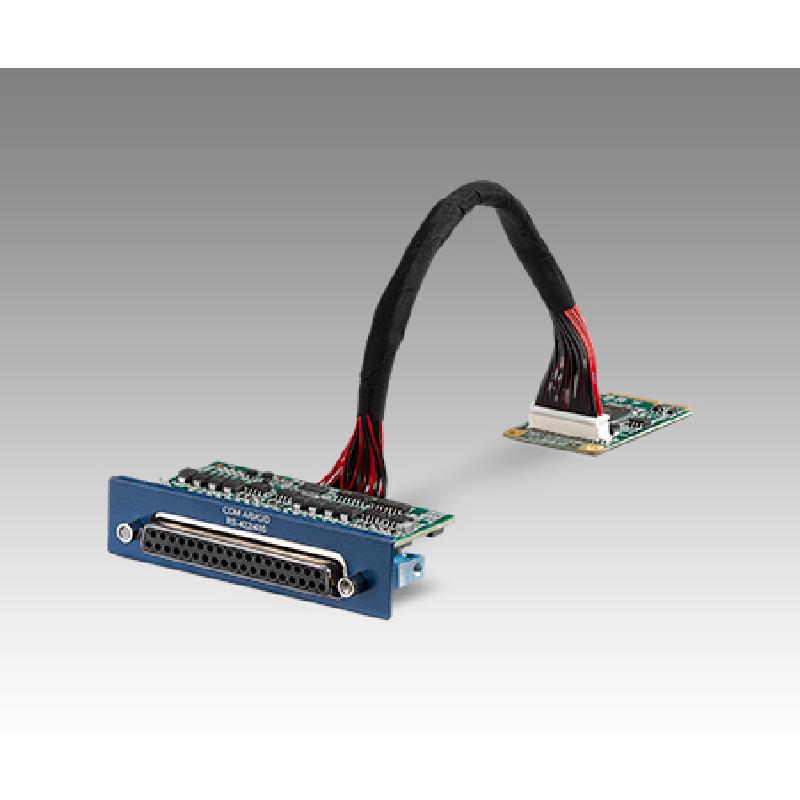

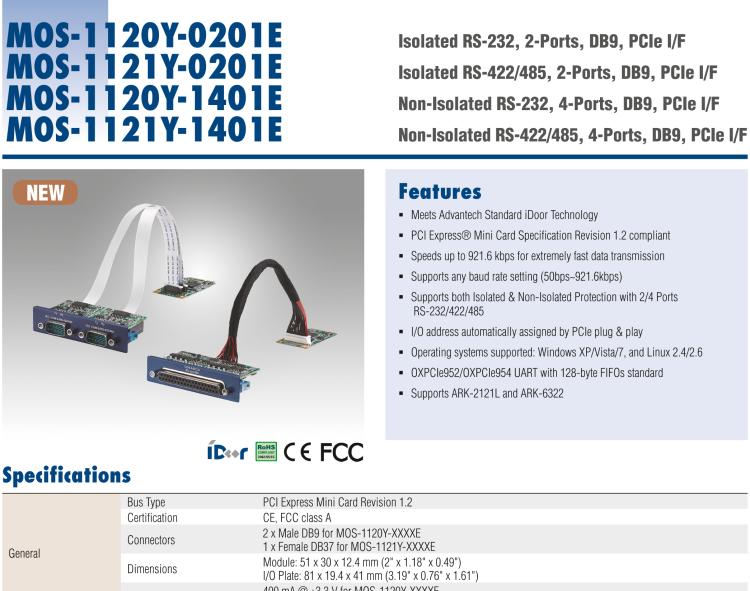

研華MOS-1121Y-1401E Non-Isolated RS-422/485, 4-Ports, DB9, PCIe I/F

• Meets Advantech Standard iDoor Technology
• PCI Express? Mini Card Specification Revision 1.2 compliant
• Speeds up to 921.6 kbps for extremely fast data transmission
• Supports any baud rate setting (50bps~921.6kbps)
• Supports both Isolated & Non-Isolated Protection with 2/4 Ports RS-232/422/485
• I/O address automatically assigned by PCIe plug & play
• Operating systems supported: Windows XP/Vista/7, and Linux 2.4/2.6
• OXPCIe952/OXPCIe954 UART with 128-byte FIFOs standard
• Supports ARK-2121L and ARK-6322
• Non-Isolated RS-422/485, 4-Ports, DB9, PCIe I/F
